Automatic Water Bowls
Click to Enlarge
Catalog Number Description each How Many
King Size Water Bowl 4YKB King Size Bowl (Includes Bowl and Brass Assembly, as Shown) $34.10
Game Size Automatic Water Bowl 4YGB Game Size Bowl (Includes Bowl and Brass Assembly, as Shown) $27.30
Baby Chick Size Automatic Water Bowl 4YBB Baby Chick Size Bowl (Includes Bowl and Brass Assembly, as Shown) $27.50

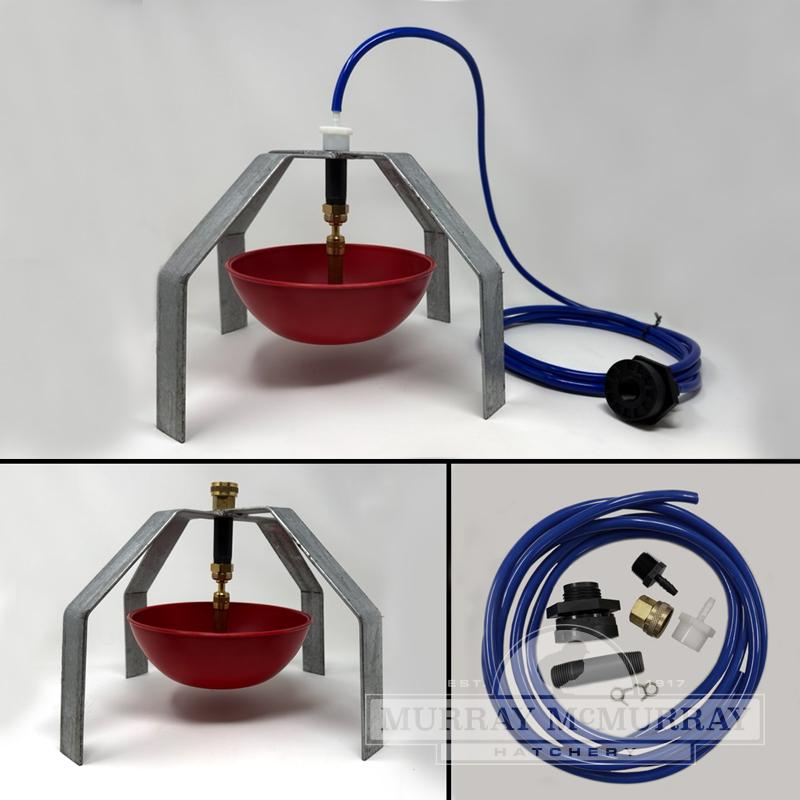

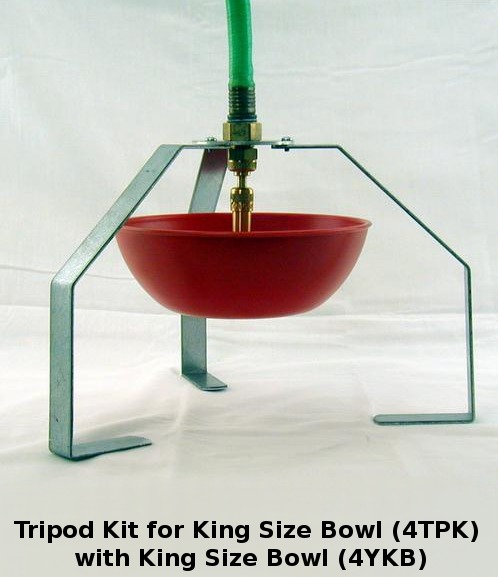

Tripod Kit for King Size Bowl 4TPK Tripod Kit for King Size Bowl (Bowl Sold Separately) $39.98

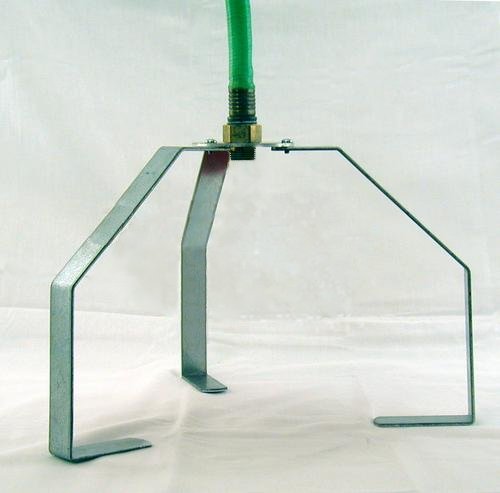

Tripod Kit for Game and Baby Chick Waterer 4TPG Tripod Kit for Game and Baby Chick Size Bowl (Bowl Sold Separately) $36.56
Wall Mount Kit for Automatic Water Bowl 4YK Wall Mount Kit (Bowl Sold Separately)
Currently Backordered
click to enlarge 4YWL Bowl Guard for Auto Bowls $8.35
click to enlarge 4G30 Valve Tool-for removal of valves in auto bowl $7.65
click to enlarge 4YV Replacement Valve (Pkg of 5) $6.75
click to enlarge 4YBA Complete Brass Assembly $28.00
Free Shipping (some restrictions apply)

To Use Free Shipping:
  1. Place Eligible items in your cart. Eligible items are marked on the product details page.
  2. During Checkout, select free shipping.
  3. Items shipped via free shipping may require up to 10 Business Days.
  4. If your order contains both free shipping items and other, ineligible items, you will be charged shipping for the ineligible items.
  5. Excludes items that are not marked by the free shipping statement.
  6. Applies to delivery addresses in the continental U.S. only. Free shipping is not available for Alaska, Hawaii, Puerto Rico, Virgin Islands or Canada.
  7. We use various shipping carriers to deliver orders and a particular carrier may not be requested.
  8. We reserve the right to change or discontinue Free Shipping at any time.
Automatic Water Bowl with Wall Mount Kit This handy system works great for chickens, pets, game birds, and other poultry. It can be used on pressure or gravity water systems and is easily detached for quick and easy cleaning. Operates at 10 to 70 PSI.


The BOWLS come in three sizes. KING SIZE BOWL can provide water for 300 mature birds.  GAME SIZE BOWL can provide water for 200 game birds.  BABY CHICK SIZE BOWL can provide water for 250 baby chicks.


Each BOWL includes a durable plastic bowl and one complete brass assembly. The BOWL is will not rust or corrode and should not be harmed by most medications. The brass valve assembly that comes with the BOWL is made from solid brass and attaches to standard 1/2 inch pipe (NPT thread).  The brass assembly can be easily disassembled for cleaning.  To connect the water bowl to your garden hose there are two options.  You can purchase the proper garden hose adapter and 1/2 inch pipe at your local hardware store, or use one of our MOUNT KITS, either the TRIPOD KIT or the WALL MOUNT KIT.  Each MOUNT KIT contains both the mount and the necessary connections to enable you to directly connect the waterer to your garden hose.


The BOWL GUARD acts as an anti-roost device, and it helps prevent debris from getting into the water. Install it above the bowl.


We carry replacement parts for the bowls. The COMPLETE BRASS ASSEMBLY is identical to the brass assembly that is included with each of the water bowls described above. The REPLACEMENT VALVE come in packages of 5, and each is just the valve portion of the brass assembly.

 Use the  VALVE TOOL (sold separately) to remove and replace the valve.

Additional images - click to enlarge.
click to enlarge Automatic Water Bowls
Attachments - click to download.
These are instructions for the wall kit for auto water bowl.
Also of Interest
Free Range Poultry
Questions & Answers
In the video he used a valve kit for the bucket is this provided in the wall mount kit or do you have to purchase separately. I do not see it listed as a separate item to purchase? thank you
The wall mount kit is in the picture. This kit includes; 6" pipe, 2 brackets, end piece that attaches to pipe, and the nuts and bolts to attach product. Instructions included. also hose adapter
Is the gravity feed kit for this waterer come with the tripod kit or the water bowl, or do I have order the gravity feed hose and valves separately?
The fittings and tubing needed to connect to a plastic bucket, are only included in the tripod kits. These parts are not available separately.
